Product SKUs
SYS-E50-9AP-N5

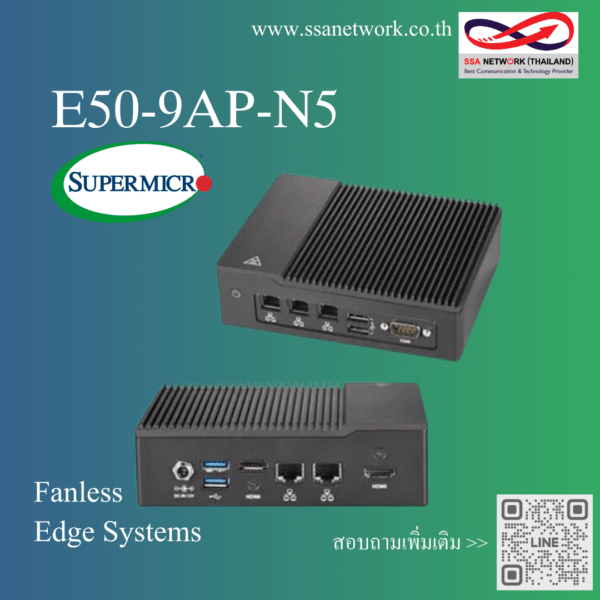

SuperServer E50-9AP-N5 (Black)
Motherboard
Super A2SAP-H
Processor/Cache
CPU
Intel® Atom® processor E3940
Single socket FCBGA 1296
9.5W, 4C
System Memory
Memory Capacity
Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM socket
Memory Type
DDR3L up to 1866MHz
DIMM Sizes
8GB, 4GB
Memory Voltage
1.35 V
On-Board Devices
Chipset
System on Chip
Network Controllers
5 LAN with Intel® Ethernet Controller I210-IT
Audio
ALC 888S HD Audio
Graphics
Intel® HD Graphics
HDMI (max. resolution up to 3840 x 2160 @ 30Hz)
Input / Output
LAN
5 RJ45 Gigabit Ethernet LAN ports
USB
2 USB 3.0 ports (rear)
2 USB 2.0 ports (front)
Video
2 HDMI port
COM
1 COM
TPM
1 TPM 2.0 onboard
Chassis
Form Factor
Proprietary
Model
CSE-E50
Dimensions
Width
5.82″ (148mm)
Height
1.72″ (44mm)
Depth
4.64″ (118mm)
Package
5.5″ (H) x 9.5″ (W) x 8″ (D)
Weight
Gross Weight: 3.52 lbs (1.6 kg)
Net Weight: 2.2 lbs (1 kg)
Available Colors
Black
Front Panel
Buttons
Power On/Off button
LEDs
Power LED (Hard drive activity LED)
Expansion Slots
PCI-Express
1 Half size Mini-PCIe
M.2
1 M.2 B-Key 2242 for storage (SATA SSD)
1 M.2 E-Key 2230 for communication module
Drive Bays / Storage
Internal
1 SATA 3.0 for 7mm 2.5″ SATA SSD OR
1 M.2 B-Key 2242 for SATA SSD
System Cooling
Fans
Fanless design
Power Supply
40W lockable 12V DC power adapter
System BIOS
BIOS Type
AMI UEFI
Management
Software
SuperDoctor® 5
Watch Dog
Power Configurations
+12V DC Power Input
ACPI Power Management
Control of power-on for recovery from AC power loss
Force Power On by Jumper
Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
-20°C to 50°C (-4°F to 122°F) with 0.7 m/s air flow
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature.
