Description

CPU

• Intel® Alder Lake-N SoC Processors

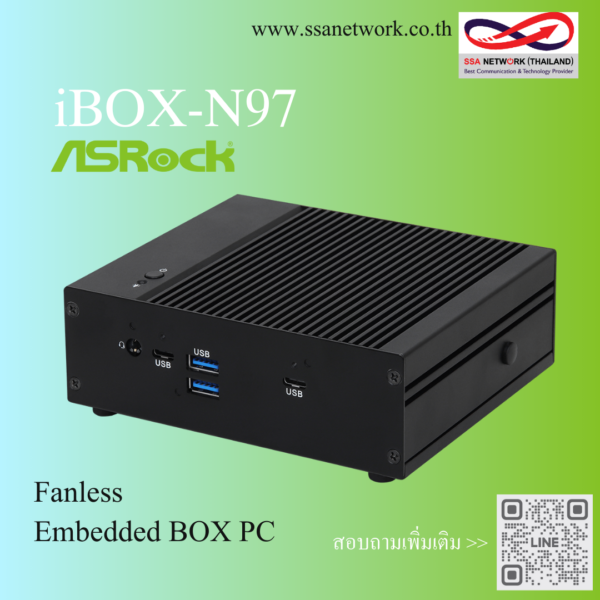

• iBOX-N97( N97, QC, Max Speed Up to 3.6GHz, 12W)

Chipset

• SoC

BIOS

• AMI SPI 256 Mbit

Technology

• Single Channel DDR4 3200 MHz

Capacity

• 32GB

Socket

• 1 x 260-pin SO-DIMM

Controller

• Intel® UHD Graphics

HDMI

• HDMI 2.0b
• Max resolution up to 4096×2160@60Hz

DisplayPort

• DisplayPort 1.4a, DP++
• Max resolution up to 4096×2160@60Hz

MultiDisplay

• Triple-Display (Included 2 outputs from Type-C)

M.2

• 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Interface

• Realtek ALC256, High Definition Audio.

Controller/ Speed

• LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
• LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps

Connector

• 2 x RJ-45

USB

• 2 x USB 3.2 Gen2 (Type-A)
• 2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)

Audio

• 1 (headphone & microphone jack)

HDMI

• 2 x HDMI 2.0b

Ethernet

• 2 x 2.5 Gigabit LAN

USB

• 2 x USB 3.2 Gen2 (Type-A)

DC Jack

• 1

Storage

• M.2
• 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
• *M.2 Key M 2280(Supported by bracket)

SATA

• 1 x SATA3.0 (6.0 Gb/s)

Output

• From Super I/O to drag RESETCON#

Interval

• 256 Segments, 0, 1, 2, …255sec

Input PWR

• 1 x 19V/65W Power Adapter

Power On

• AT/ATX Supported
• – AT : Directly PWR on as power input ready
• – ATX : Press button to PWR on after power input ready

Operating Temp

• -20ºC ~ 40ºC with air flow 0.5~0.8 m/s (with extended temp. peripherals)

Storage Temp

• -40° C ~ 85° C

Operating Humidity

• 5% ~ 90%

Storage Humidity

• 5% ~ 90%

Construction

• Aluminum housing

Mounting

• VESA mount/Wall mount/Din-rail

Dimensions (L x W x H)

• 135 x 110 x 44.5mm (5.31″ x 4.33″ x 1.75″)

Weight

• Net Weight: 0.7Kg

OS Support

• Windows 10/11

Certifications

• CE, FCC

TPM

• TPM 2.0 onboard IC

Packing List

• 1 x 19V/65W Power Adapter
• 1 x Wall mount kit
