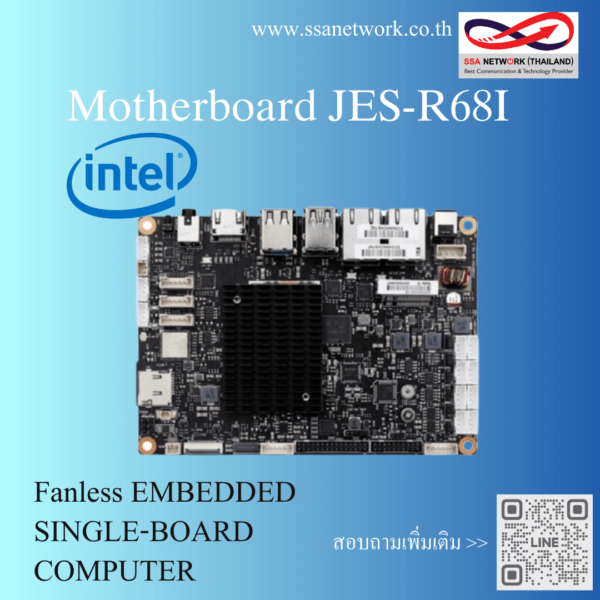

3.5inch ARM Motherboard JES-R68I

Description

CPU
  • Rockchip RK3568J, Quad core Cortex-A55 processors up to 1.8 GHz, 64-bit Arm® v8.2-A architecture
NPU
  • 1 TOPS Neural Network performance
GPU
  • Arm Mali-G52 1-Core-2EE, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 FP
H/W
  • Video Codec Decoder: H.265, H.264, VP9 up to 4K60; Encoder: H.265, H264 up to 1080p60
Memory
  • On-board 4GB LPDDR4X (2GB optional)
Flash Memory
  • On-board 32GB eMMC 5.1 for OS (8GB/16GB optional)
Ethernet
  • 2x 10/100/1000 Mbps
WiFi
  • On-board AW-CM358 module (optional), supports IEEE 802.11a/b/g/n/ac WiFi with Bluetooth 5.2
5G/4G
  • 1x M.2 Key B for 4G/5G, 1x Micro SIM slot
Display
  • 1x HDMI 2.0a, 1x eDP 1.3, 1x Dual channel LVDS, 1x 4-lane MIPI-DSI
  • Supports simultaneous display with any two interfaces, up to 4K 30Hz+1080p 60Hz
  • Camera Input 1x 2-lane MIPI-CSI; 8M ISP with HDR support
Audio
  • 1x 3.5mm Line out, 1x Speaker, 1x Mic in
USB
  • 1x USB 3.0/OTG, 4x USB 2.0
COM
  • 2x 2-wire RS-232/RS-485, 2x 2-wire RS-232/TTL, 2x 2-wire RS-232
CAN
  • 2
TF Card
  • 1
I2C
  • 1x TP-I2C
GPIO
  • 7x 3.3V GPIO, 1x ADC, 1x LED
Power Supply
  • 12V DC IN, RK809-5 PMIC
Form Factor
  • 3.5 inch, 146mm x 102mm
Operating System
  • Android 11, Ubuntu 18.04, Debian 10
Boot Options
  • eMMC
Operating Conditions
  • -40~85℃, 10%~90% RH non-condensing
Storage Conditions
  • -40~85℃, 5%~90% RH non-condensing
